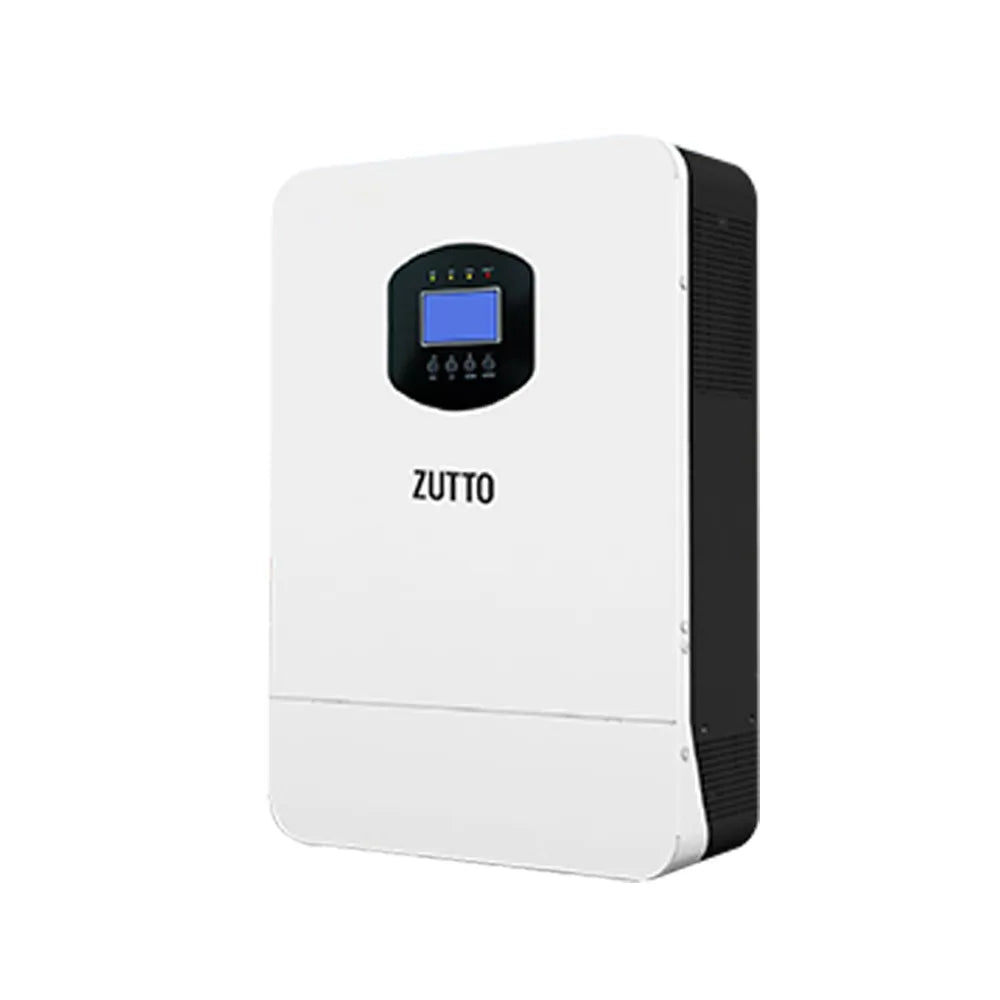

Zutto InverCore01
Precision Power for Every Need
The Zutto InverCore01 is a high-performance off-grid inverter engineered for optimal energy efficiency and seamless solar integration. Offering power outputs from 1kW to 11kW and supporting 48VDC systems, it combines advanced MPPT technology with integrated UPS functionality. Its robust design, smart WiFi monitoring, and flexible installation make it ideal for residential and commercial energy setups.
Warranty
This product comes with Zutto's Local 2-year Standard Warranty. For easy enjoyment of the Warranty, please register your Zutto Warranty.
Specifications
| Item | Model | 1KW/A1 | 3KW/A1 | 5KW/A1 | 11KW/A1 |
|---|---|---|---|---|---|
| Inverter Module | Battery Voltage | 12VDC | 24VDC | 48VDC | 48VDC |
| Rated Power | 1KW | 3.6KW | 5KW | 11KW | |
| AC Voltage | 230VAC | 230VAC | 230VAC | 230VAC | |
| MPPT PV Power | 1KW | 3KW | 5.5KW | 5.5KW*2 | |
| MPPT Voltage | 20~100VDC | 40~450VDC | 120~430VDC | 90~450VDC (2-way) | |
| Maximum parallel quantity | / | / | 6 | 3 | |
| Protection Level | IP21 | IP21 | IP21 | IP21 | |
| Parameter | Dimension | 330*228*90mm | 300*110*360mm | 335*125*480mm | 148*433*553mm |
| Weight | 3.2kg (approx.) | 8kg (approx.) | 12kg (approx.) | 18.4kg (approx.) | |
| Material/ Colour | Metal / Black | Metal / White | Metal / White | Metal / White |
Key Features
Connectivity Solutions
ZTINV001
Precision Power for Every Need
Quality Certifications
FAQs for Zutto InverCore01
What industries is the ZTESS004 designed for?What is the power output range of the Zutto InverCore01?
The Zutto InverCore01 offers power outputs ranging from 1kW to 11kW, making it versatile for various energy needs, from small residential systems to larger commercial applications.
What is the maximum parallel quantity of the Zutto InverCore01?
The Zutto InverCore01 allows for a maximum parallel quantity of 6 units for the 5kW model and 3 units for the 11kW model, enabling scalability for larger energy storage systems.
Does the Zutto InverCore01 support off-grid operation?
Yes, the Zutto InverCore01 is specifically designed for off-grid use, providing efficient energy management with integrated UPS functionality to ensure uninterrupted power during grid outages.
What is the MPPT voltage range of the Zutto InverCore01?
The Zutto InverCore01 supports MPPT voltage ranges of 20-100VDC for the 1kW model, 40-450VDC for the 3kW model, and 90-450VDC (2-way) for the 5kW and 11kW models, maximizing solar energy utilization.
What are the protection features of the Zutto InverCore01?
The Zutto InverCore01 has an IP21 protection rating, ensuring protection against dust and water ingress, making it suitable for various indoor installations while offering durable, reliable operation.
