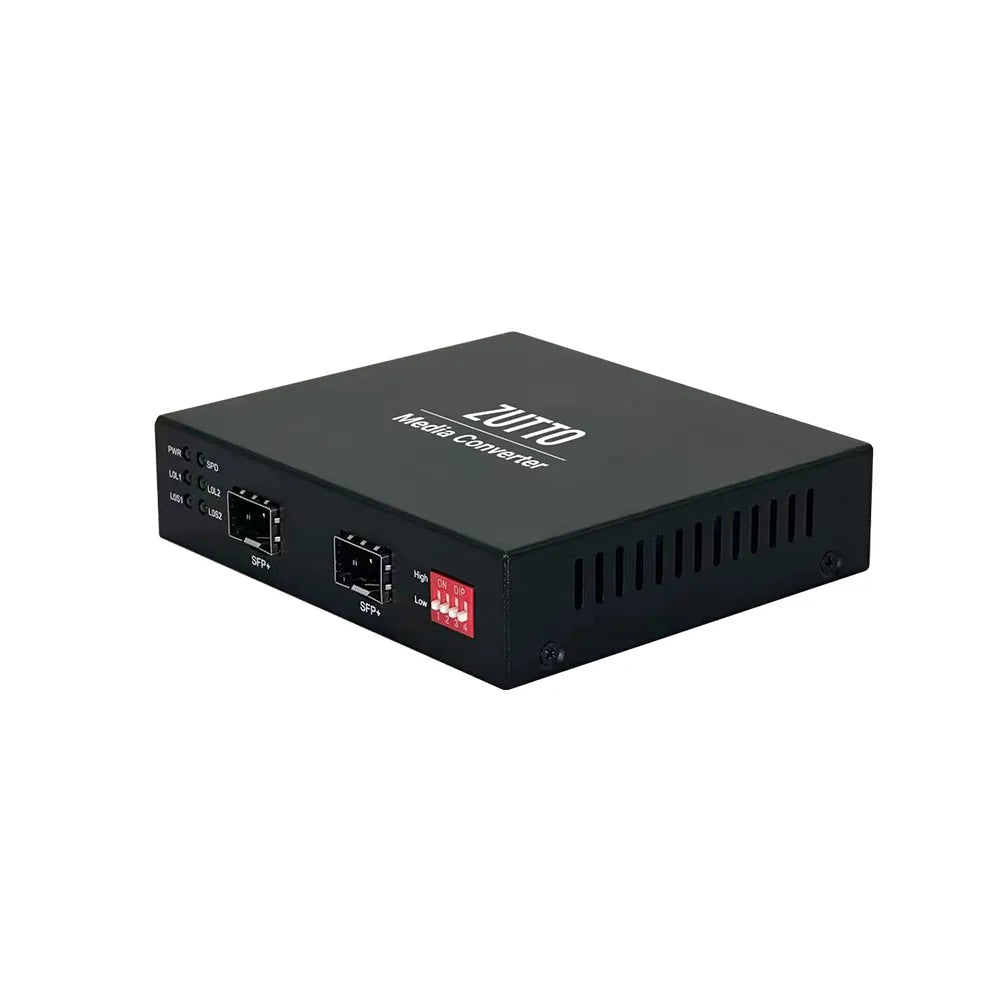

Zutto ZT10SPX-2F
High Performance SFP+ to SFP+ 10G Media Convertor
The Zutto ZT10SPX-2F series is a highly versatile two-port, 10 Gigabit fiber-to-fiber media converter. It's designed to facilitate seamless integration between various 10 Gigabit fiber devices. This series excels in media conversion at 10 Gigabit speeds across distances up to 300 meters, supporting both 10GBase-SR multi-mode fiber and 10GBase-LR single-mode fiber standards.
Warranty
This product comes with Zutto's Local 2-year Standard Warranty. For easy enjoyment of the Warranty, please register your Zutto Warranty.
Specifications
| Parameter | Symbol |
|---|---|
| Protocol | 8.5G Fiber Channel, SONET OC-192, SDH STM-64 (9.95Gbps), 10G WAN (10Gbps), 10G LAN (10.31Gbps), OTN OTU-2 (G.709) (10.70Gbps), 10G LAN with 255/237 FEC coding (11.09Gbps), 10G Fiber Channel (11.32Gbps), 10G POS |
| Transmission Rate | 8.5Gb/s - 11.7Gb/s |
| Interface Type | Type A: XFP to XFP, Type B: XFP to SFP+, Type C: SFP+ to XFP, Type D: SFP+ to SFP+ |
| Transmission Distance | XFP Module: Maximum 80Km, SFP+ Module: Maximum 80Km |
| Maximum Packet Forwarding Rate | 14,880,950/S |
| LED | PWR, SPD, LOS1, LOL1, LOS2, LOL2 |
| Power Requirements | Voltage: DC 12V~48V, Power Consumption: ≤4W |

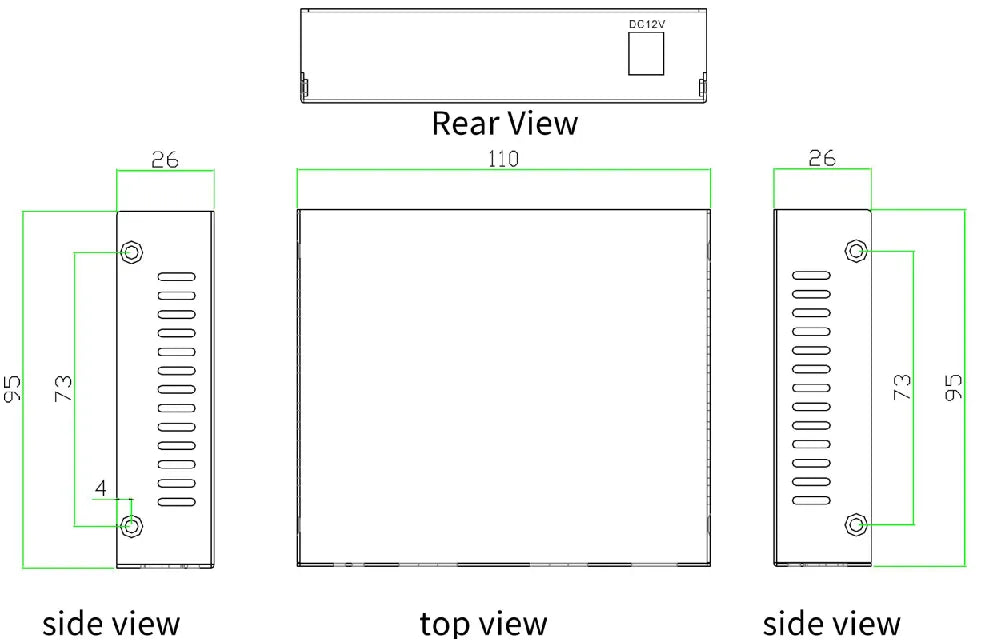

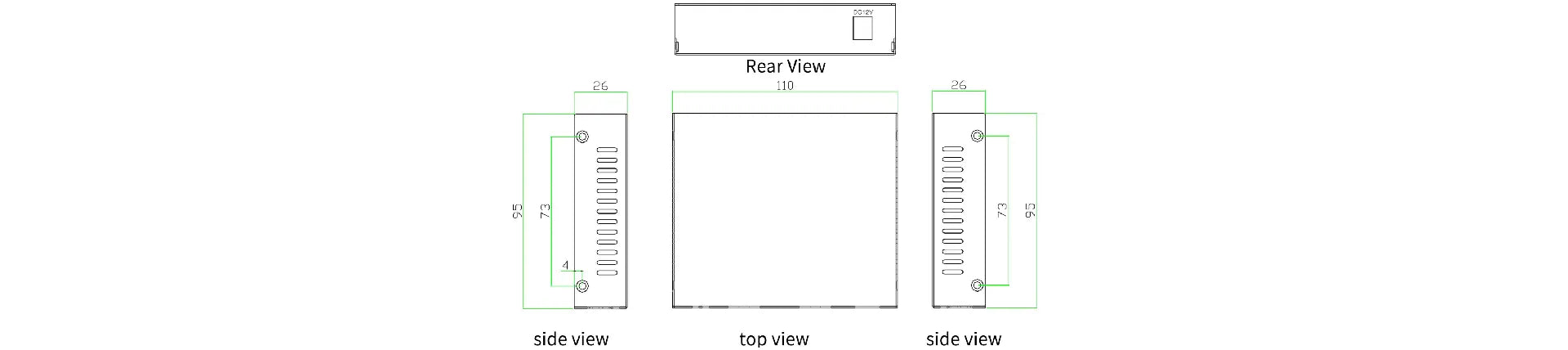

| Physical Properties | Dimension: 110(L)*95(W)*26(H)mm |
| Environmental Restrictions | Operating Temperature: -20°C ~ 60°C, Storage Temperature: -40°C ~ 85°C, Ambient Relative Humidity: 5% ~ 95% (non-condensing) |
Key Features

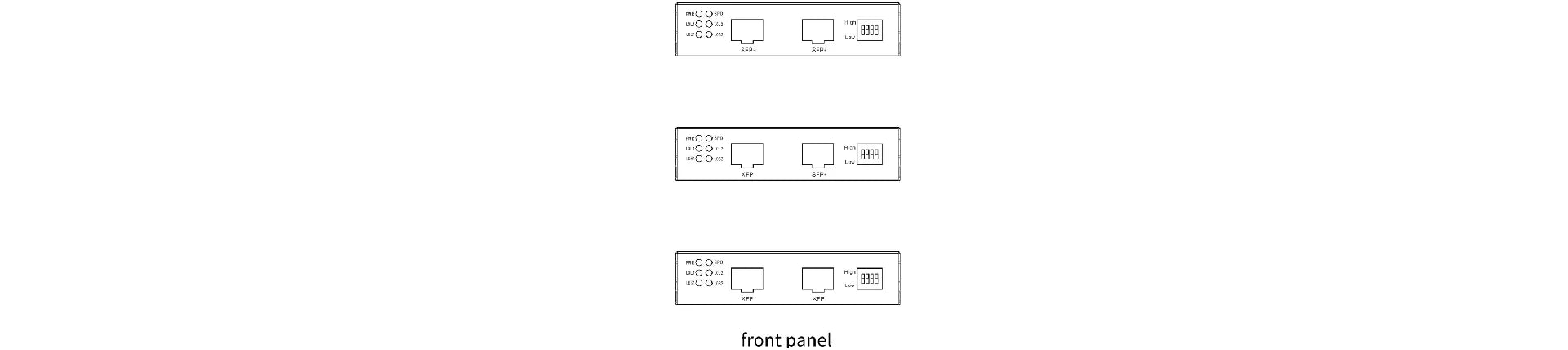

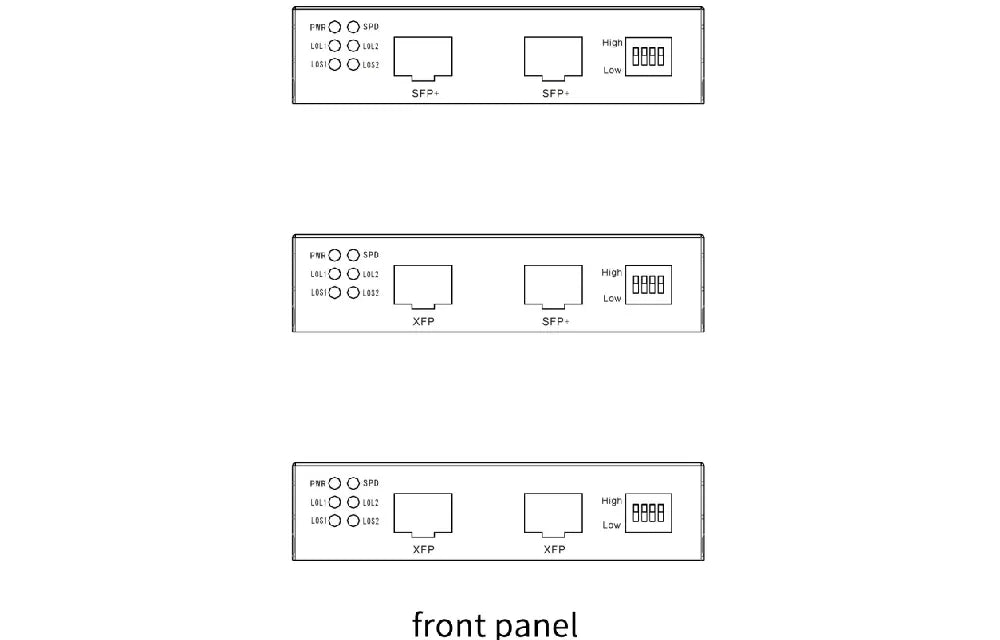

Wire connection, Front and Side panel
Quality Certifications
FAQs for ZT10SPX-2F
What is the primary use of the Zutto ZT10SPX-2F Media Converter?
The Zutto ZT10SPX-2F is a fiber-to-fiber 10G media converter, designed to enable seamless integration between 10GBase-SR multi-mode fiber and 10GBase-LR single-mode fiber networks.
Does the converter require complex setup or configuration?
No, the Zutto ZT10SPX-2F features plug-and-play functionality, allowing for quick and easy installation without the need for advanced technical expertise.
What is the maximum transmission distance supported by this media converter?
With compatible XFP or SFP+ modules, the ZT10SPX-2F can support transmission distances of up to 80 kilometers, making it ideal for long-range fiber optic communication.
How does the ZT10SPX-2F ensure high signal integrity over long distances?
The converter employs advanced 3R (Re-amplifying, Re-shaping, Re-timing) technology, which enhances optical signal quality and reliability, even over extended distances.
What are the power requirements and environmental specifications for this device?
The ZT10SPX-2F operates on DC 12V–48V with a power consumption of ≤4W. It supports an operating temperature range of -20°C to 60°C, ensuring reliability in various environments.
