Zutto ZT10SPX-1F1E
10G Ethernet Media Converter

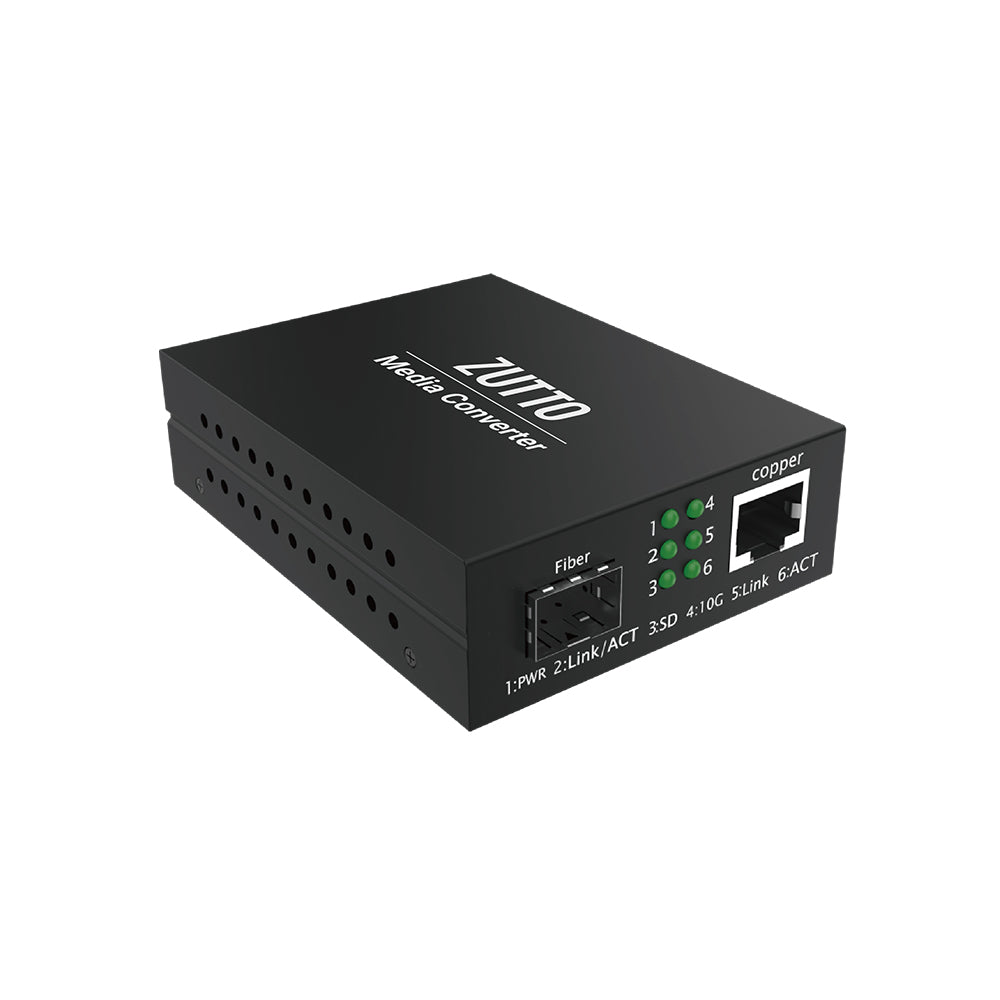

Name: Zutto ZT10SPX-1F1E 10G Ethernet Media Converter
Brand: ZUTTO
Availability: OutOfStock

The ZUTTO ZT10SPX-1F1E Media Converter is a sophisticated networking device designed to support two distinct media types for network connectivity: 10GBase-T and 10GBase-FX.

Engineered with an advanced 10Gbase Ethernet PHY chip, this converter ensures seamless integration and smooth operation between these two network segments. Its versatile design allows it to function both as a standalone unit and as a slide-in module that can be incorporated into a 19” converter rack chassis.

This dual functionality makes it an ideal solution for centralized network management in wiring closets. Its adaptability and high-performance capabilities make it a valuable asset for network infrastructures requiring reliable, high-speed data transmission across diverse media types.

REQUEST MORE INFO ▶

Download Data Sheets

Warranty

This product comes with Zutto's Local 2-year Standard Warranty. For easy enjoyment of the Warranty, please register your Zutto Warranty.

Specifications

Parameter	Symbol
Standards	1000Base-T, 2.5GBase-T, 5GBase-T, 10GBase-T, 1000Base-X, 2500Base-X, 5GBase-R, 10GBase-R
Media Supported	1000Base-T: Cat5 UTP/STP. MAX 100m; 2.5GBase-T: Cat5e UTP/STP. MAX 50m; 5GBase-T: Cat5e UTP/STP. MAX 50m; 10GBase-T: Cat6a UTP/STP. MAX 50m;
Port Type	RJ45, SFP+ Slot
Work Mode	1000Base-T to 1000Base-X, 2.5GBase-T to 2500Base-X, 5GBase-T to 5GBase-R, 10GBase-T to 10GBase-R
Power Supply	INPUT: DC 5~12V, DC Adapter: 12V1A or 5V2A
Power Consumption	MAX 4.5W
Operation Temperature	0°C to 55°C
Relative Humidity	5% to 80% (non-condensation)

Key Features

Dual Media Support

It supports both 10GBase-T and 10GBase-FX media types, providing flexibility for network connections. This dual compatibility is essential for environments that utilize both copper (10GBase-T) and fiber optic (10GBase-FX) networking infrastructures.

Advanced PHY Chip Integration

The inclusion of a high-performance 10Gbase Ethernet PHY chip ensures smooth operation and integration between the different network segments. This chip is critical for maintaining high data transfer rates and reliable connectivity between the two media types.

Versatile Deployment Options

The converter is designed to function as either a standalone unit or as a slide-in module within a 19” converter rack chassis. This flexibility is advantageous for centralized network management, particularly in wiring closets, offering adaptability to various network setup requirements.

A red speedometer icon with the needle pointing towards high speed, symbolizing fast data transmission and efficient network connectivity.

High-Speed Data Transmission

Being a 10G Ethernet device, it is capable of handling data transmission at speeds up to 10 Gigabits per second, which is essential for high-bandwidth applications and modern, data-intensive network environments.

Wire connection, Front and Side panel

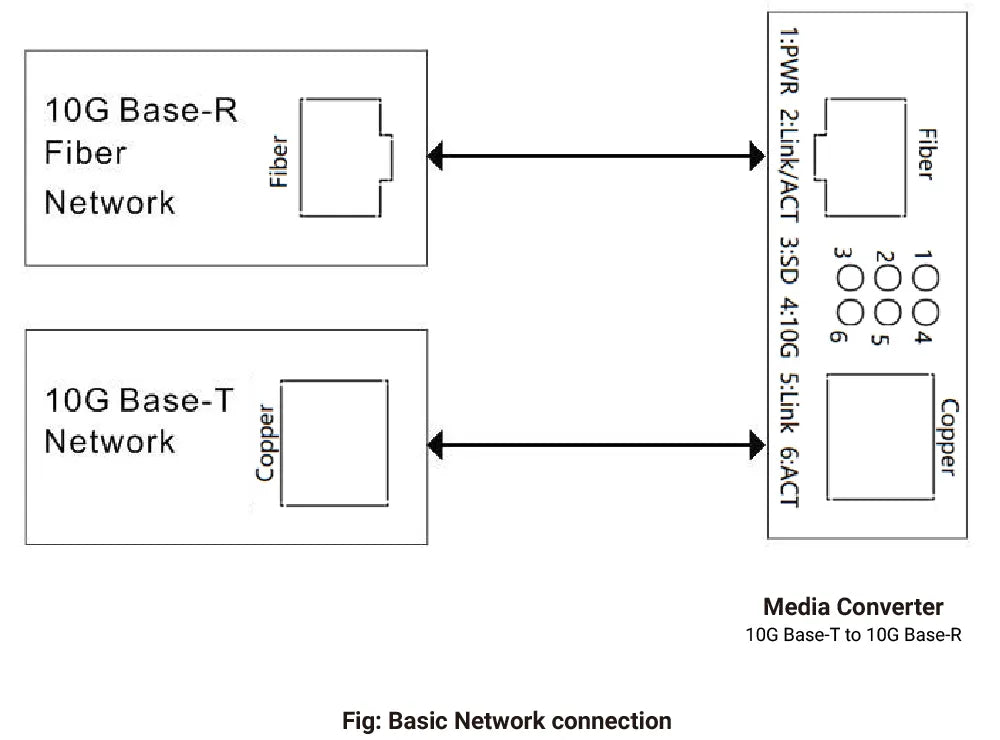

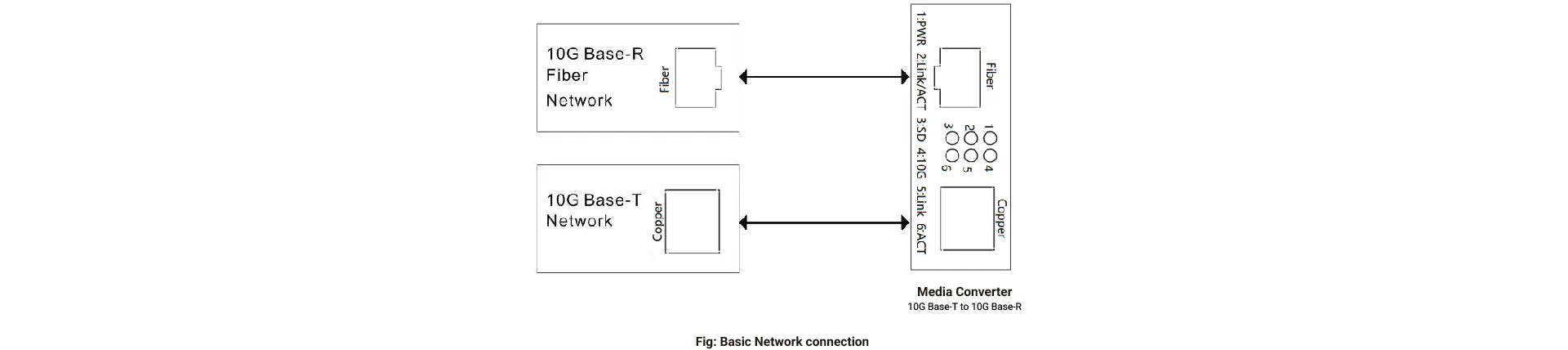

Basic network connection diagram of Zutto ZT10SPX-1F1E 10G Ethernet media converter, demonstrating connectivity between 10G Base-T copper network and 10G Base-R fiber network.

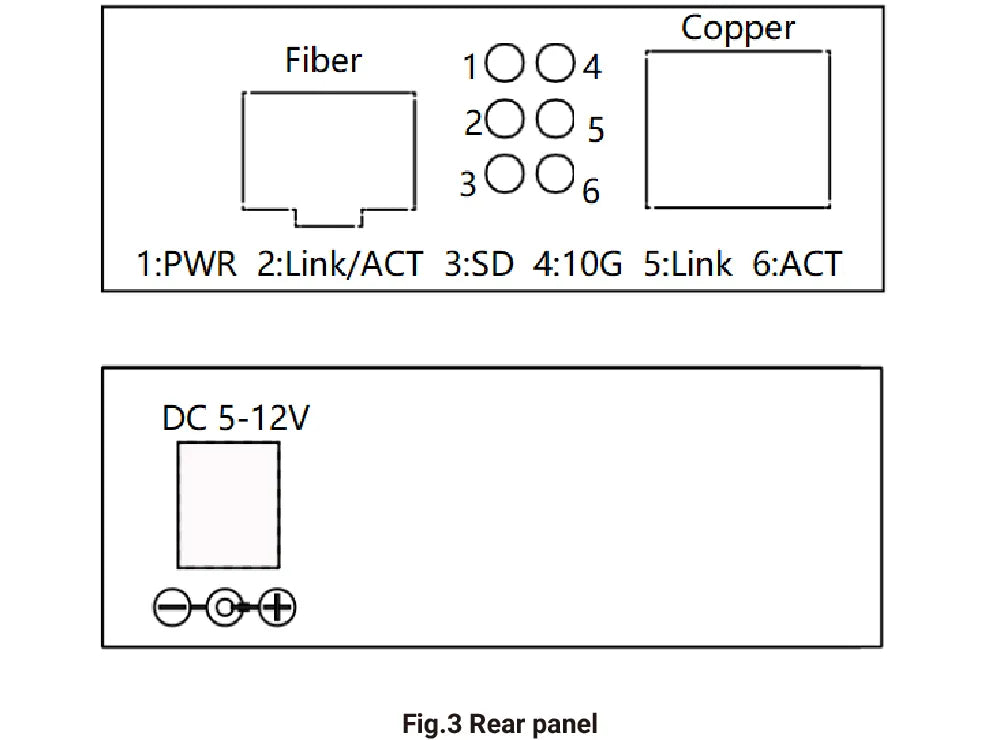

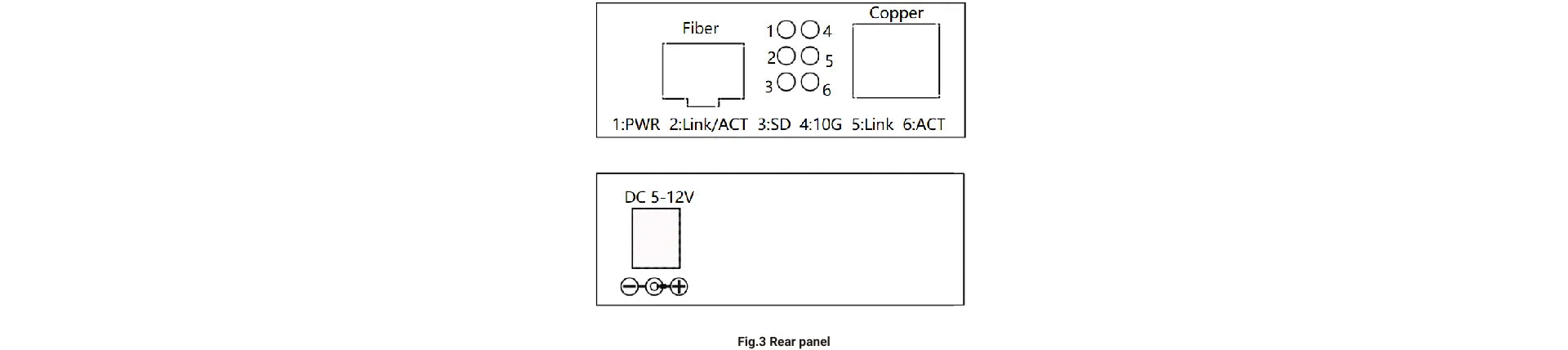

Zutto ZT10SPX-1F1E media converter rear panel diagram showing fiber and copper ports, supporting DC 5-12V power input, with indicators including PWR, Link/ACT, SD, 10G, Link, and ACT.

Quality Certifications

FAQs for ZT10SPX-1F1E

What is the primary function of the Zutto ZT10SPX-1F1E Media Converter?

The Zutto ZT10SPX-1F1E Media Converter bridges 10GBase-T (copper) and 10GBase-FX (fiber optic) connections, enabling seamless data transmission across diverse network types.

Can the media converter be used in both standalone and rack-mounted setups?

Yes, the Zutto ZT10SPX-1F1E can function as a standalone unit or be integrated into a 19” converter rack chassis for centralized network management.

What are the supported media and connection standards?

The converter supports 10GBase-T, 5GBase-T, 2.5GBase-T, 1000Base-T (copper), and 10GBase-FX, 5GBase-R, 2.5GBase-X, 1000Base-X (fiber optic), ensuring compatibility with various networking infrastructures.

What power supply options are available for the converter?

The unit operates with an input of DC 5–12V and can be powered using either a 12V1A or 5V2A adapter. Ensure the adapter conforms to your region's power requirements.

What are the key indicators on the device, and what do they signify?

The ZT10SPX-1F1E features multiple LED indicators:

PWR: Indicates power status.
Link/Act: Shows connection and activity for both fiber and copper links.
10G: Displays the data transfer rate, with "On" for 10Gbps and "Off" for lower speeds.
