Zutto 40GBASE QSFP+ optical transceiver module designed for high-speed 40Gbps Ethernet networks. It features a hot-pluggable QSFP+ form factor, low power consumption, and reliable performance for data center and enterprise applications.

Zutto ZT40QSPX-2K001

40Gb/s 2km QSFP+ Transceiver / Up to 2 km transmission

The Zutto ZT40QSPX-2K001 is a high- performance 40Gbps QSFP+ optical transceiver designed for long-range data transmission in Ethernet and telecom networks. With 4 parallel lanes, each capable of up to 11.2Gbps, it ensures an aggregate data rate of 40Gbps over 2km of single-mode fiber. Its MPO connector and QSFP MSA compliance guarantee seamless integration with modern networking systems.

Featuring a robust design with built-in digital diagnostics, the ZT40QSPX-2K001 operates efficiently with a low power consumption of 2.5W. Designed to withstand challenging environments, it is the ideal solution for datacenters, switches, routers, and 40G Ethernet links.

REQUEST MORE INFO ▶
 Download Data Sheets

Absolute Maximum Ratings


Parameter Symbol Min. Typical Max. Unit
Storage Temperature Ts -40 +80 °C
Supply Voltage
VccT,R
 -0.3 3.6 V
Relative Humidity RH 0 85 %

Recommended Operating Environment


Parameter Symbol Min. Typical Max. Unit
Case operating Temperature
TC
0
+70
°C
Supply Voltage
VccT, R
 +3.13 3.3 +3.47 V
Supply Current
 Icc
757
 mA
Power Dissipation
 PD
2.5 W

Electrical Characteristics


Parameter Symbol Min. Typical Max. Unit Note
Data Rate per Channel

-
10.3125
11.2
Gbps
Power Consumption
 -
1.7
2.5
 W
Supply Current
 Icc - 515
757
 mA
Control I/O Voltage-High
VIH
 2.0
V
Control I/O Voltage-Low
VIL
 0
V
Transmitter Section:
Parameter Symbol Min. Typical Max. Unit Note
Single Ended OutputVoltageTolerance
0.3
4
V
CommonmodeVoltage Tolerance
 15
mV
Transmit Input Diff Voltage
 VI 300
1100
 mV
Transmit Input Diff Impedance
 Zin 90 100
110
Ω
Receiver Section:
Parameter Symbol Min. Typical Max. Unit Note
Single Ended OutputVoltageTolerance
-0.3
4
V
Rx Output Diff Voltage
 Vo 300
800
 mV
Transmit Output Diff Impedance
Zout
 90 100 110
Ω

Key Features


A red speedometer icon with the needle pointing towards high speed, symbolizing fast data transmission and efficient network connectivity.

High Data Throughput

Delivers an aggregate data rate of 40Gbps with4 independent lanes, each supporting up to 11.2Gbps.
An icon displaying two servers connected by bidirectional arrows, representing extended network coverage and enhanced data transmission performance.

Extended Transmission Range

Supports reliable connectivity up to 2km on single-mode fiber, ideal for long-distance networking needs.
A red battery icon with full charge bars, symbolizing energy-efficient operation and low power consumption for improved energy utilization.

Energy-Efficient Design

Operates with a low power consumption of just 2.5W, optimizing energy usage for large-scale deployments.
A magnifying glass icon with a lightning symbol inside, representing advanced monitoring and compliance management to ensure system security and stability.

Advanced Diagnostics and Compliance

Built-in digital diagnostic monitoring and QSFP MSA compliance ensure superior reliability and compatibility.

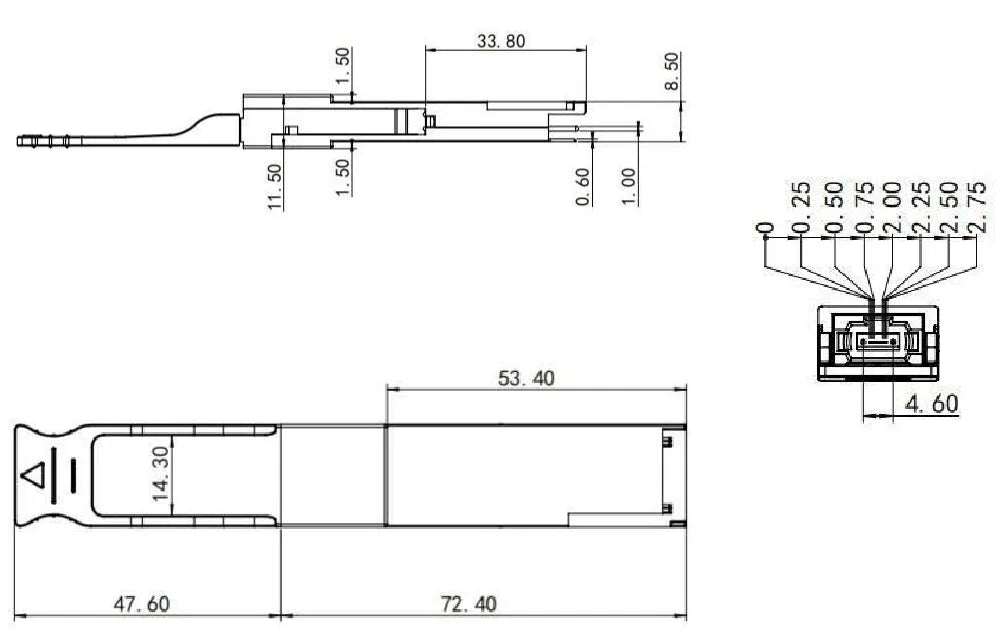

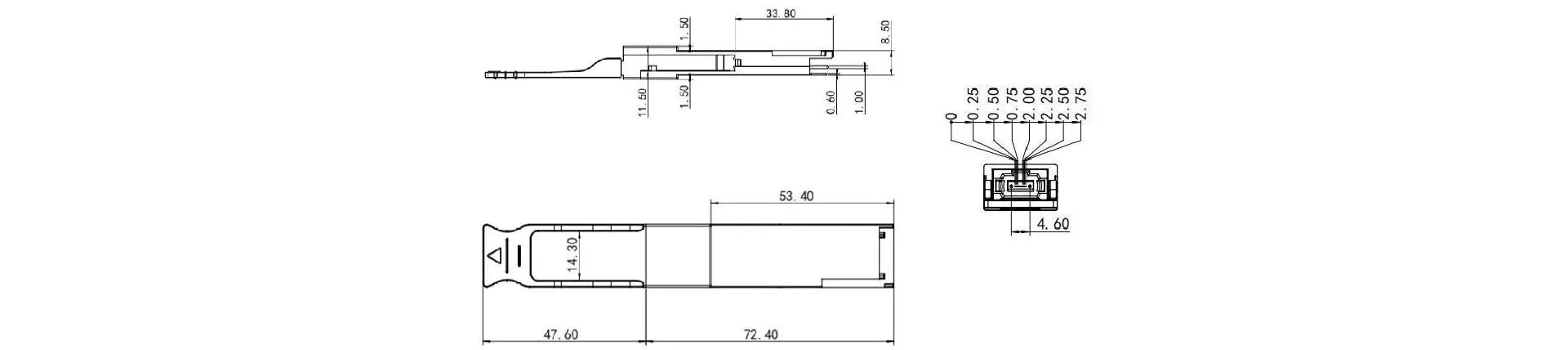

Mechanical Dimensions(Unit:mm)


Detailed dimension and specification diagram of Zutto ZT40QSPX-100M001 40Gbps QSFP+ transceiver with MTP/MPO connector and 4-channel full-duplex transmission. Suitable for up to 100m on OM3 and 150m on OM4 multimode fiber.Detailed dimension and specification diagram of Zutto ZT40QSPX-100M001 40Gbps QSFP+ transceiver with MTP/MPO connector and 4-channel full-duplex transmission. Suitable for up to 100m on OM3 and 150m on OM4 multimode fiber.

Quality Certifications


Reach_Compliant Certification CE Certification FCC Certification ROHS Certification
